Product Overview

The CyberGlove CyberGrasp system is an innovative force feedback system for your fingers and hand. It lets you “reach into your computer” and grasp computer-generated or tele-manipulated objects.

  • cyberglove haptic device inition london technology
  • cyberglove cybergras haptic technology inition london

WHAT THE MANUFACTURER SAYS:

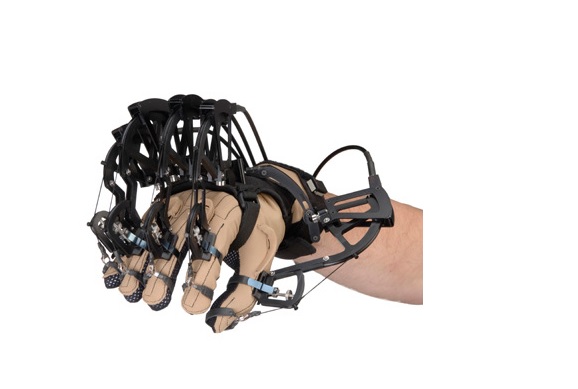

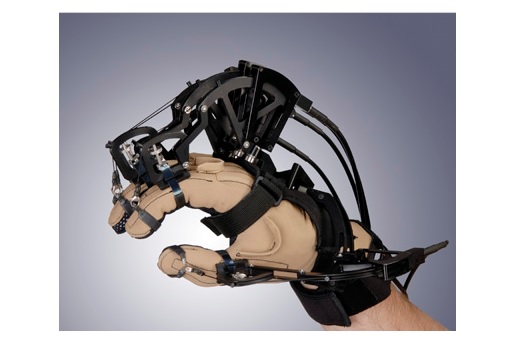

The CyberGrasp device is a lightweight, force-reflecting exoskeleton that fits over a CyberGlove data glove (wired version) and adds resistive force feedback to each finger. With the CyberGrasp force feedback system, users are able to feel the size and shape of computer-generated 3D objects in a simulated virtual world.

Grasp forces are produced by a network of tendons routed to the fingertips via the exoskeleton. There are five actuators, one for each finger, which can be individually programmed to prevent the user’s fingers from penetrating or crushing a virtual solid object. The high-bandwidth actuators are located in a small actuator module, which can be placed on the desktop. Additionally, since the CyberGrasp system does not provide grounded forces, the actuator module can also be worn in a GraspPack backpack for portable operation, dramatically increasing the effective workspace.

The device exerts grasp forces that are roughly perpendicular to the fingertips throughout the range of motion, and forces can be specified individually. The CyberGrasp system allows full range-of-motion of the hand and does not obstruct the wearer’s movements. The device is fully adjustable and designed to fit a wide variety of hands.

Originally developed under STTR contract to the United States Navy for use in telerobotic applications, the CyberGrasp system allows an operator to control a remotely-located robotic “hand” and literally “feel” the object being manipulated.

WHAT INITION SAYS:

The CyberGrasp from CyberGlove allows seamless manual haptic interaction without inhibiting the wearer’s range of movement. Useful in a range of environments from virtual maintenance of vehicles to the handling of hazardous materials, the CyberGrasp system has the potential to revolutionise the way you work.
